DRF4463F

20dBm ISM RF Transceiver Module

DRF4463F Features

* Frequency Range: 433/868MHz

* Modulation: (G)FSK/4(G)FSK/(G)MSK

* SPI Data Interface

* Sensitivity: -126dBm

* Output Power: +20dBm

* Data Rate: -0.1~1000 kbps

* Digital RSSI

* Wake-up Timer

* 64/128 bytes TX/RX FIFOs

* Integrated Voltage Regulator

* Fre

DRF4463F General Description

DRF4463F is a type of low cost RF front-end transceiver module based on SI4463 from Silicon labs. It keeps all the advantages of RFIC SI4463 but simplifies the circuit design. The high sensitivity (-126dBm) and 20dBm high power output make the module suitable for most short range applications. DRF44.

DRF4463F Datasheet (101.99 KB)

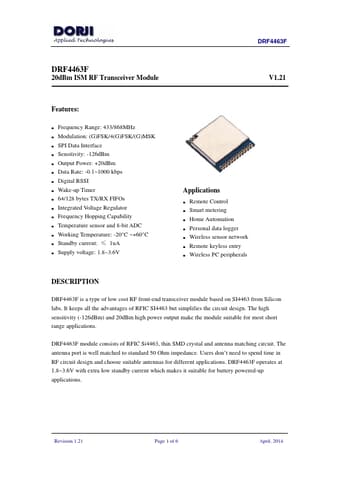

DRF4463F Datasheet Preview — Preview of DRF4463F PDF

Datasheet Details

Part number:

DRF4463F

Manufacturer:

DORJI

File Size:

101.99 KB

Description:

20dbm ism rf transceiver module.
