DIM600M1HS17-PA500

Half Bridge IGBT

DIM600M1HS17-PA500 Features

* Trench Gate IGBT

* High Thermal Cycling

* Cu Base with Enhanced Al2O3 Substrates

* 10µs Short Circuit Withstand KEY PARAMETERS VCES VCE(sat)

* (typ) IC (max) IC(RM) (max) 1700V 1.80V 600A 1200A

* Measured at the auxiliary terminals APPLICATIONS

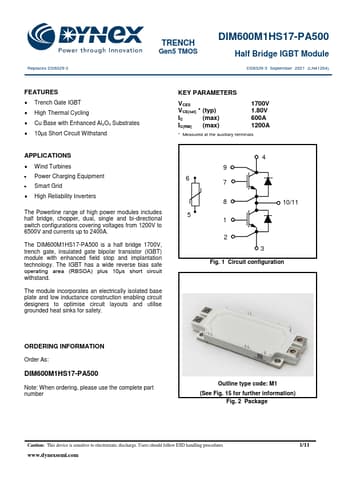

DIM600M1HS17-PA500 Datasheet (643.74 KB)

Preview of DIM600M1HS17-PA500 PDF

Datasheet Details

Part number:

DIM600M1HS17-PA500

Manufacturer:

DYNEX

File Size:

643.74 KB

Description:

Half bridge igbt.
