DIM650H2HS17-PA500 Half Bridge IGBT

📥 Download Datasheet  Datasheet Preview Page 1

Description

Replaces DS6303-1 TRENCH Gen5 TMOS DIM650H2HS17-PA500 Half Bridge IGBT Module DS6303-2 February 2020 (LN39622) .

📥 Download Datasheet

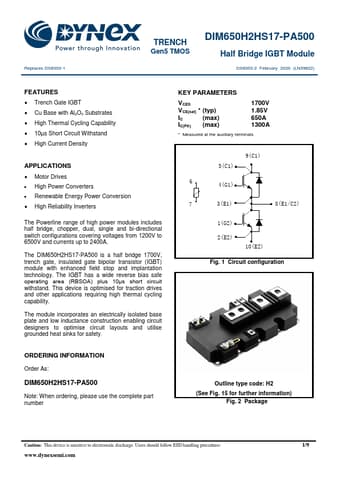

Preview of DIM650H2HS17-PA500 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DIM650H2HS17-PA500
Manufacturer
DYNEX
File Size
487.58 KB
Datasheet
DIM650H2HS17-PA500-DYNEX.pdf
Description
Half Bridge IGBT

Features

* Trench Gate IGBT
* Cu Base with Al2O3 Substrates
* High Thermal Cycling Capability
* 10µs Short Circuit Withstand

Applications

* Motor Drives
* High Power Converters
* Renewable Energy Power Conversion
* High Reliability Inverters The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up
