Preliminary Data
FEATURES
• • • • • 10µs Short Circuit Withstand Soft Punch Through Silicon Lead Free construction Isolated MMC Base with AlN Substrates High Thermal Cycling Capability

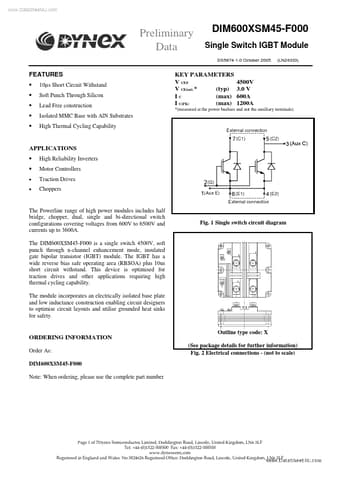

DIM600XSM45-F000
Single Switch IGBT Module
DS5874-1.0 October 2005 (LN24333)
KEY PARAMETERS V CES V CE(sat) * (typ) IC (max) I C(PK) (max)
4500V 3.0 V 600A 1200A
*(measured at the power busbars and not the auxiliary terminals)
APPLICATIONS
• •
• •
High Reliability Inverters Motor Controllers Traction Drives Choppers
The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 600V to 6500V and currents up to 3600A.
