DIM600DDM17-A000, Dual Switch IGBT Module

www.DataSheet4U.com .DIM600DDM17-A000 Dual Switch IGBT Module DS5596-1.1 September 2005 (LN24180) .

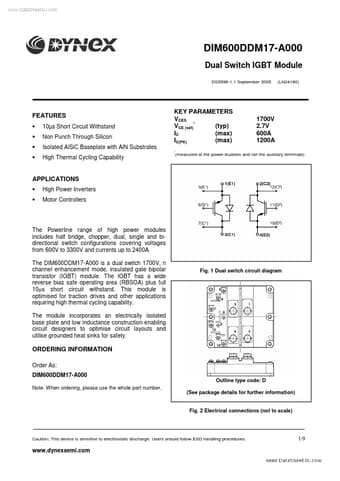

datasheet Preview Page 1 from Datasheet4u.com

DIM600DDM17-A000_DynexSemiconductor.pdf

DIM600DDM17-A000 Datasheet Preview — Preview of DIM600DDM17-A000 PDF

Datasheet Details

Part number:

DIM600DDM17-A000

Manufacturer:

Dynex Semiconductor

File Size:

218.15 KB

Description:

Dual Switch IGBT Module

Features

* 10µs Short Circuit Withstand Non Punch Through Silicon Isolated AlSiC Baseplate with AlN Substrates KEY PARAMETERS VCES VCE (sat)
* (typ) IC (max) IC(PK) (max)
* 1700V 2.7V 600A 1200A High Thermal Cycling Capability (measured at the power busbars an

Applications

* High Power Inverters Motor Controllers The Powerline range of high power modules includes half bridge, chopper, dual, single and bidirectional switch configurations covering voltages from 600V to 3300V and currents up to 2400A. The DIM600DDM17-A000 is a dual switch 1700V, n chan
