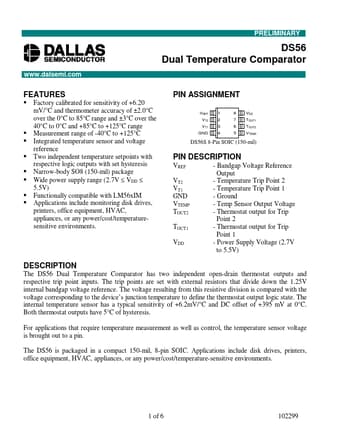

DS56

Dual Temperature Comparator

Dallas Semiconducotr

DS56 Features

* Factory calibrated for sensitivity of +6.20 mV/°C and thermometer accuracy of ±2.0°C over the 0°C to 85°C range and ±3°C over the 40°C to 0°C and +85°C to +125°C range

* Measurement range of -40°C to +125°C

* Integrated temperature sensor and voltage reference

* Two independent tem

DS56 General Description

VREF VT2 VT1 GND VTEMP TOUT2 TOUT1 VDD - Bandgap Voltage Reference Output - Temperature Trip Point 2 - Temperature Trip Point 1 - Ground - Temp Sensor Output Voltage - Thermostat output for Trip Point 2 - Thermostat output for Trip Point 1 - Power Supply Voltage (2.7V to 5.5V) DESCRIPTION The DS56 .

DS56 Datasheet (95.46 KB)

DS56 Datasheet Preview — Preview of DS56 PDF

Datasheet Details

Part number:

DS56

Manufacturer:

Dallas Semiconducotr

File Size:

95.46 KB

Description:

Dual temperature comparator.
