DS56-0005

Low Cost Six-Way SMT Power Divider 824 - 960 MHz

DS56-0005 Features

* Small Size, Low Profile Superior Repeatability (Lot-to-lot Variation) Industry Standard SOIC-16 SMT Plastic Package Typical Isolation 25dB Typical Insertion Loss 0.8dB Low Cost SOIC-16 Description M/A-COM’s DS56-0005 is an IC-based monoli

DS56-0005 General Description

M/A-COM’s DS56-0005 is an IC-based monolithic power divider in a low cost SOIC-16 plastic package. This 6-way power divider is ideally suited for applications where PCB real estate is at a premium and part count reduction and cost are critical. Typical applications include base station switching net.

DS56-0005 Datasheet (38.53 KB)

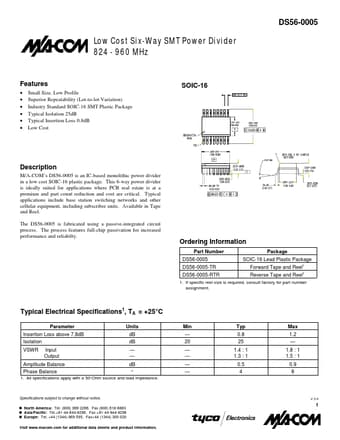

Preview of DS56-0005 PDF

Datasheet Details

Part number:

DS56-0005

Manufacturer:

Tyco Electronics

File Size:

38.53 KB

Description:

Low cost six-way smt power divider 824 - 960 mhz.
