DS56-0006 - Low Cost Six-Way SMT Power Divider 1700 - 2000 MHz

Product Overview

Tyco Electronics

📥 Download Datasheet

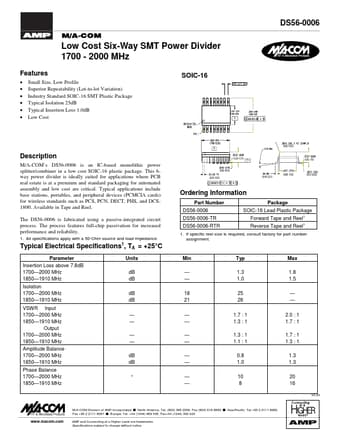

DS56-0006 Low Cost Six-Way SMT Power Divider 1700 - 2000 MHz by Tyco Electronics - Datasheet Preview — Datasheet preview – DS56-0006

Datasheet Details

Part number	DS56-0006
Manufacturer	Tyco Electronics
File Size	75.20 KB
Description	Low Cost Six-Way SMT Power Divider 1700 - 2000 MHz
Datasheet	DS56-0006 Datasheet
Additional preview pages of the DS56-0006 datasheet.

Product details

Description

M/A-COM’s DS56-0006 is an IC-based monolithic power splitter/combiner in a low cost SOIC-16 plastic package.

Features

Small Size, Low Profile Superior Repeatability (Lot-to-lot Variation) Industry Standard SOIC-16 SMT Plastic Package Typical Isolation 25dB Typical Insertion Loss 1.0dB Low Cost SOIC-16.
