DMBTA42 Datasheet - Dc Components

DMBTA42 NPN Transistor

Designed for application as a video output to drive color CRT, or as a dialer circuit in electronics telephone. SOT-23 .020(0.50) .012(0.30) Pinning 1 = Base 2 = Emitter 3 = Collector 1 3 .063(1.60) .055(1.40) .108(0.65) .089(0.25) 2 Absolute Maximum Ratings(TA=25oC) Characteristic Collector-B.

DMBTA42_DcComponents.pdf

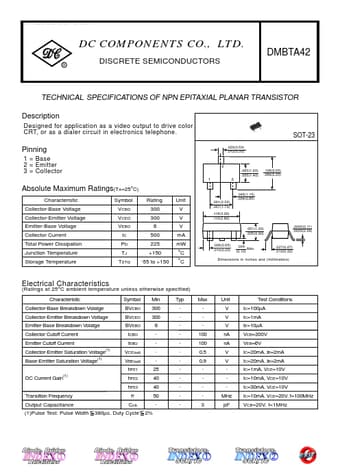

Preview of DMBTA42 PDF

Datasheet Details

Part number:

DMBTA42

Manufacturer:

Dc Components

File Size:

251.68 KB

Description:

Npn transistor.
