DTM4600, DTM4600-Din N- and P-Channel MOSFET

DTM4600 Description

N- and P-Channel 30 V (D-S) MOSFET DTM4600 www.din-tek.jp PRODUCT SUMMARY N-Channel P-Channel VDS (V) 30 - 30 RDS(on) (Ω) 0.016 at VGS = 10 V 0.0.

DTM4600 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

DTM4600 Applications

* Motor Drive S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 D1 G1 S1 S2 G2 D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage VDS 30 - 30 Gate-Source Voltage VGS ± 20 ± 20 TC = 25 °C 8e - 8e Continuous

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTM4600, DTM4600-Din. Please refer to the document for exact specifications by model.

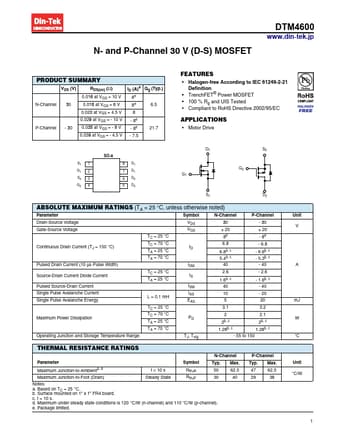

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTM4600, DTM4600-Din
Manufacturer
Din-Tek
File Size
1.86 MB
Datasheet
DTM4600-Din-Tek.pdf
Description
N- and P-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: DTM4600, DTM4600-Din.
Please refer to the document for exact specifications by model.
