DTM4606BDY N- and P-Channel MOSFET

DTM4606BDY Description

DTM4606BDY www.din-tek.jp N- and P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY N-Channel P-Channel VDS (V) RDS(on) () 30 0.015 at VGS = 10 V 0.019.

DTM4606BDY Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

DTM4606BDY Applications

* DC/DC Converter
* Load Switch D1 S2 G2 G1 Top View S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage VDS 30 - 30 Gate-Source Voltage VGS ± 20 TC = 25 °C

📥 Download Datasheet

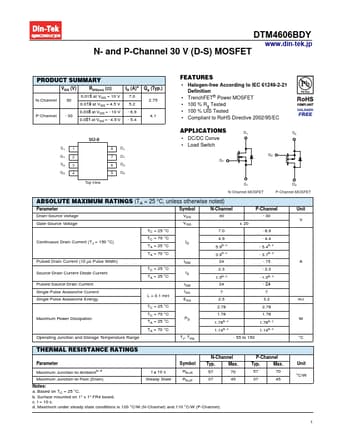

Preview of DTM4606BDY PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTM4606BDY
Manufacturer
Din-Tek
File Size
450.02 KB
Datasheet
DTM4606BDY-DinTek.pdf
Description
N- and P-Channel MOSFET
