* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* Battery, Load and Adaptor Switches - Notebook Computers - Notebook Battery Packs S Top View 1 8 2 7 3 6 4 5 G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Paramet
DTQ3409
Din-Tek
442.89 KB
P-channel mosfet.

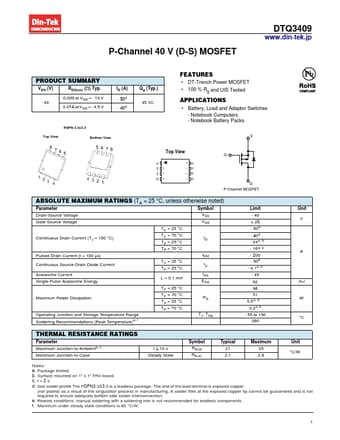

P-Channel 40 V (D-S) MOSFET
DTQ3409
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) () Typ.
0.009 at VGS = - 10 V - 40
0.014 at VGS = - 4.5 V
ID.
