DTQ633, DTQ633-Din, P-Channel MOSFET

P-Channel 30-V (D-S) MOSFET DTQ633 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (mΩ) - 30 4.6 at VGS = - 10 V 7 at VGS = - 4.5 V ID (A).

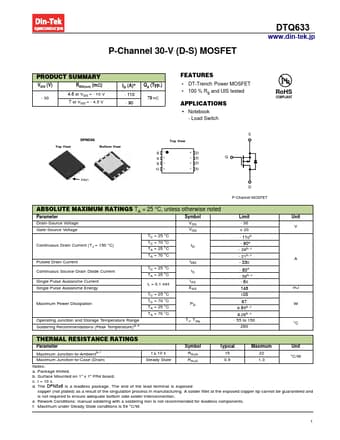

datasheet Preview Page 1 from Datasheet4u.com

DTQ633-Din-Tek.pdf

DTQ633 Datasheet Preview — This datasheet PDF includes multiple part numbers: DTQ633, DTQ633-Din. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DTQ633, DTQ633-Din

Manufacturer:

Din-Tek

File Size:

480.57 KB

Description:

P-Channel MOSFET

Note:

This datasheet PDF includes multiple part numbers: DTQ633, DTQ633-Din.
Please refer to the document for exact specifications by model.

Features

* DT-Trench Power MOSFET

Applications

* Notebook - Load Switch RoHS COMPLIANT Top View DFN5X6 Bottom View Top View 1 8 2 7 3 6 4 5 S G PIN1 D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS - 30 V VGS ±
