* Halogen-free According to IEC 61249-2-21 Definition
* Surface Mount
* Low-Profile Through-Hole
* Available in Tape and Reel
* Dynamic dV/dt Rating
* 150 °C Operating Temperature
* Fast Switching
* Fully Avalanche Rated
* Compl
DTU1625
Din-Tek
339.88 KB
Power mosfet.

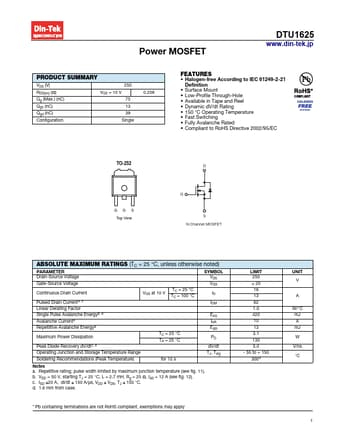

Power MOSFET
DTU1625
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
250
RDS(on) () Qg (Max.) (nC)
VGS = 10 V 75
Qgs (nC)
13
Qgd (nC)
39
Configurat.
