* DT-Trench Power MOSFET
* 100 % Rgand UIS Tested
* 175 °C Junction Temperature APPLICATIONS
* DC/DC Converters
* DC/AC Inverters
* Motor Drives D DS G Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Para
DTU18N20BS Datasheet (451.88 KB)
DTU18N20BS
Din-Tek
451.88 KB
N-channel mosfet.

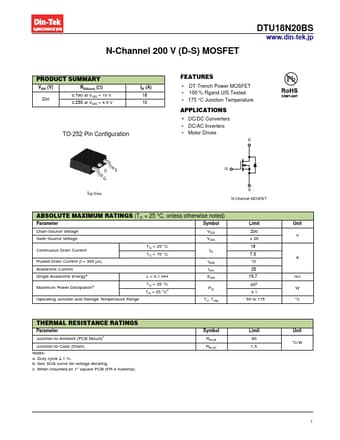

N-Channel 200 V (D-S) MOSFET
DTU18N20BS
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 200
RDS(on) () 0.180 at VGS = 10 V 0.255 at VGS = 4.5 V
ID (A) 18.
