AH3766Q-P-B Datasheet, Latch, Diodes Incorporated

AH3766Q-P-B Features

  • Latch
  • Bipolar Latch Operation (South Pole: On, North Pole: off)
  • High Sensitivity: Bop and Brp of +110G and -110G Typical
  • Single, Open-Drain Output with Overcurre

PDF File Details

Part number:

AH3766Q-P-B

Manufacturer:

DIODES ↗ Incorporated

File Size:

487.95kb

Download:

📄 Datasheet

Description:

Automotive hall- effect latch. The AH3766Q is an AEC-Q100 qualified high-voltage, mediumsensitivity Hall-Effect latch IC designed for brushless DC-motor commutation

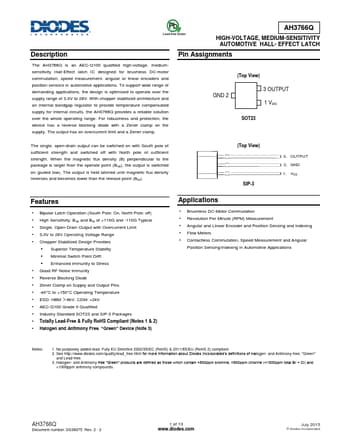

Datasheet Preview: AH3766Q-P-B 📥 Download PDF (487.95kb)
Page 2 of AH3766Q-P-B Page 3 of AH3766Q-P-B

AH3766Q-P-B Application

  • Applications To support wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. With chopper
