AH3765Q Datasheet, Latch, Diodes

AH3765Q Features

  • Latch
  • Bipolar Latch Operation (South Pole: On, North Pole: off)
  • High Sensitivity: Bop and Brp of +70G and -70G Typical
  • Single Open-Drain Output with Overcurrent

PDF File Details

Part number:

AH3765Q

Manufacturer:

DIODES ↗

File Size:

505.44kb

Download:

📄 Datasheet

Description:

High-voltage medium-sensitivity automotive hall-effect latch. The AH3765Q is an AEC-Q100 qualified high-voltage, mediumsensitivity Hall-Effect latch IC designed for brushless DC-motor commutation

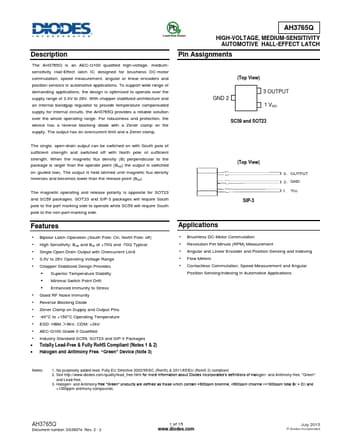

Datasheet Preview: AH3765Q 📥 Download PDF (505.44kb)
Page 2 of AH3765Q Page 3 of AH3765Q

AH3765Q Application

  • Applications To support wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. With chopper
