AH3772 - HIGH-SENSITIVITY HALL EFFECT LATCH

Diodes

📥 Download Datasheet

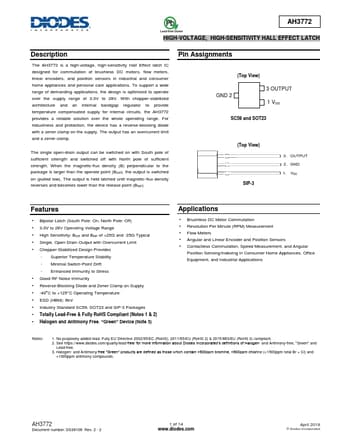

AH3772 Datasheet Preview — Preview of AH3772 PDF

Datasheet Details

Part number: AH3772
Manufacturer: DIODES ↗
File Size: 475.69 KB
Datasheet: AH3772-Diodes.pdf
Description: HIGH-SENSITIVITY HALL EFFECT LATCH

AH3772 Product details

Description

The AH3772 is a high-voltage, high-sensitivity Hall Effect latch IC designed for commutation of brushless DC motors, flow meters, linear encoders, and position sensors in industrial and consumer home appliances and personal care applications..

Features

Bipolar Latch (South Pole: On, North Pole: Off).
3.0V to 28V Operating Voltage Range.
High Sensitivity: BOP and BRP of +25G and -25G Typical.
Single, Open-Drain Output with Overcurrent Limit.
Chopper-Stabilized Design Provides - Superior Temperature Stability - Minimal Switch-Point Drift - Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse-Blocking Diode and Zener Clamp on Supply.
-40C to +125°C Operating Tempera.
