AH3775 - HIGH-VOLTAGE MEDIUM-SENSITIVITY HALL EFFECT LATCH

Diodes

📥 Download Datasheet

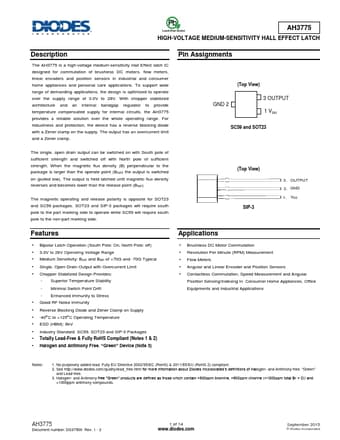

AH3775 Datasheet Preview — Preview of AH3775 PDF

Datasheet Details

Part number: AH3775
Manufacturer: DIODES ↗
File Size: 469.67 KB
Datasheet: AH3775-Diodes.pdf
Description: HIGH-VOLTAGE MEDIUM-SENSITIVITY HALL EFFECT LATCH

AH3775 Product details

Description

The AH3775 is a high-voltage medium-sensitivity Hall Effect latch IC designed for commutation of brushless DC motors, flow meters, linear encoders and position sensors in industrial and consumer home appliances and personal care applications..

Features

Bipolar Latch Operation (South Pole: On, North Pole: off).
3.0V to 28V Operating Voltage Range.
Medium Sensitivity: BOP and BRP of +70G and -70G Typical.
Single, Open-Drain Output with Overcurrent Limit.
Chopper Stabilized Design Provides: - Superior Temperature Stability - Minimal Switch Point Drift - Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode and Zener Clamp on Supply.
-40C to +125C Oper.
