AH3777 - HIGH-VOLTGAE LOW-SENSITIVITY HALL EFFECT LATCH

Diodes

📥 Download Datasheet

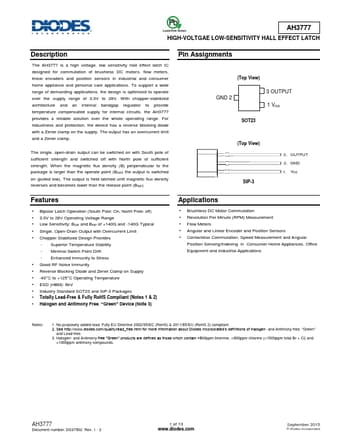

AH3777 Datasheet Preview — Preview of AH3777 PDF

Datasheet Details

Part number: AH3777
Manufacturer: DIODES ↗
File Size: 442.72 KB
Datasheet: AH3777-Diodes.pdf
Description: HIGH-VOLTGAE LOW-SENSITIVITY HALL EFFECT LATCH

AH3777 Product details

Description

The AH3777 is a high voltage, low sensitivity Hall effect latch IC designed for commutation of brushless DC motors, flow meters, linear encoders and position sensors in industrial and consumer home appliance and personal care applications..

Features

Bipolar Latch Operation (South Pole: On, North Pole: off).
3.0V to 28V Operating Voltage Range.
Low Sensitivity: BOP and BRP of +140G and -140G Typical.
Single, Open-Drain Output with Overcurrent Limit.
Chopper Stabilized Design Provides - Superior Temperature Stability - Minimal Switch Point Drift - Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode and Zener Clamp on Supply.
-40°C to +125°C Operat.
