AH372

INTERNAL PULL-UP HALL EFFECT LATCH

AH372 Features

* Bipolar Hall Effect Latch Operation

* 2.2V to 20V Operating Range

* Single Output with Built-in Pull-up Resistor

* 25mA output Sink Capability

* -40°C to +125°C Operating Temperature

* Industry Standard SIP-3 (Ammo Pack), SIP-3 (Bulk Pack), SC59 and SOT23 Packages

* Tot

AH372 General Description

AH372 is a single-digital-output Hall-Effect latch sensor with internal pull-up resistor for high temperature operation. The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier to amplify Hall voltage, and a comparator to provide switching hysteresis for noise reject.

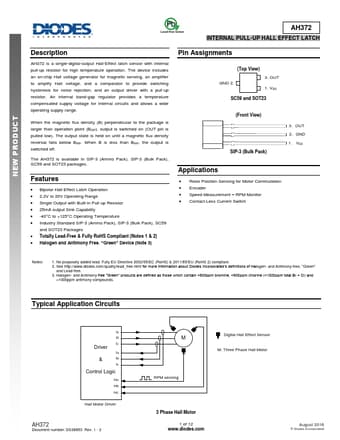

AH372 Datasheet (457.33 KB)
