AH3774 - HIGH-VOLTAGE HIGH-SENSITIVITY HALL EFFECT LATCH

Diodes

📥 Download Datasheet

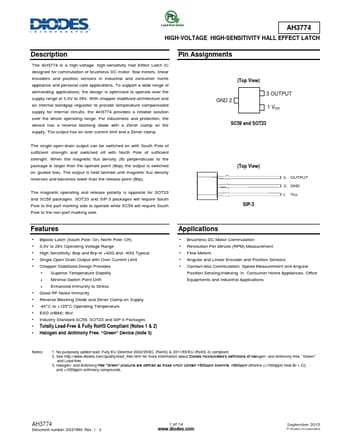

AH3774 Datasheet Preview — Preview of AH3774 PDF

Datasheet Details

Part number: AH3774
Manufacturer: DIODES ↗
File Size: 468.86 KB
Datasheet: AH3774-Diodes.pdf
Description: HIGH-VOLTAGE HIGH-SENSITIVITY HALL EFFECT LATCH

AH3774 Product details

Description

The AH3774 is a high-voltage, high-sensitivity Hall Effect Latch IC designed for commutation of brushless DC motor, flow meters, linear encoders and position sensors in industrial and consumer home appliance and personal care applications..

Features

Bipolar Latch (South Pole: On, North Pole: Off).
3.0V to 28V Operating Voltage Range.
High Sensitivity: Bop and Brp of +40G and -40G Typical.
Single Open Drain Output with Over Current Limit.
Chopper Stabilized Design Provides.
Superior Temperature Stability.
Minimal Switch Point Drift.
Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode and Zener Clamp on Supply.
-40°C to +125°C O.
