AH3776 - HIGH-SENSITIVITY HALL EFFECT LATCH

Diodes

📥 Download Datasheet

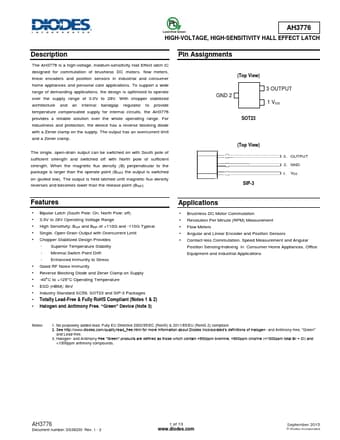

AH3776 Datasheet Preview — Preview of AH3776 PDF

Datasheet Details

Part number: AH3776
Manufacturer: DIODES ↗
File Size: 463.75 KB
Datasheet: AH3776-Diodes.pdf
Description: HIGH-SENSITIVITY HALL EFFECT LATCH

AH3776 Product details

Description

The AH3776 is a high-voltage, medium-sensitivity Hall Effect latch IC designed for commutation of brushless DC motors, flow meters, linear encoders and position sensors in industrial and consumer home appliances and personal care applications..

Features

Bipolar Latch (South Pole: On, North Pole: off).
3.0V to 28V Operating Voltage Range.
High Sensitivity: BOP and BRP of +110G and -110G Typical.
Single, Open-Drain Output with Overcurrent Limit.
Chopper Stabilized Design Provides - Superior Temperature Stability - Minimal Switch Point Drift - Enhanced Immunity to Stress.
Good RF Noise Immunity.
Reverse Blocking Diode and Zener Clamp on Supply.
-40C to +125°C Operating Tempe.
