AL1672 - SINGLE STAGE DIMMABLE BUCK CONVERTER

AL1672 Description

NOT RECOMMENDED FOR NEW DESIGN NO ALTERNATIVE PART AL1672 SINGLE STAGE DIMMABLE BUCK CONVERTER WITH 600V/4A MOSFET .
The AL1672 is a high performance single stage Buck convertor, targeting dimmable LED lighting application.

AL1672 Features

* low start-up current and low operation current. It integrates multiple protections including over voltage, short circuit, over current and over temperature protection. It also integrates 600V/4A high voltage MOSFET. The AL1672 is available in SO-8EP package. Pin Assignments (Top View) CS 1 GND 2 EP

AL1672 Applications

* Valley Switching for Low Switching Loss
* Low Start-Up Current
* High PF and Low THD
* High Efficiency
* Tight LED Current Variation Range
* Tight Output Open Voltage Variation Range
* Integrates 600V/4A MOSFET
* Support Both PWM Dim

📥 Download Datasheet

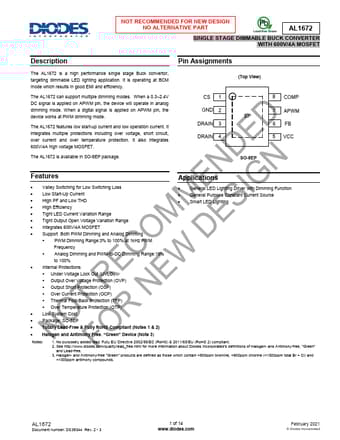

Preview of AL1672 PDF
