AL1677 - HIGH EFFICIENCY AND ACCURACY LED DRIVER CONVERTER

AL1677 Description

NEW PRODUCT AL1677 UNIVERSAL, HIGH EFFICIENCY AND ACCURACY LED DRIVER CONVERTER .
The AL1677 is a universal AC-input (85~277 VAC), high-efficiency and high-accuracy Buck LED-driver converter.

AL1677 Features

* to enhance system safety and reliability. With thermal foldback function, the AL1677 can reduce output current when the driver’s temperature is higher than the setting value. Pin Assignments (Top View) GND 1 ROVP 2 NC 3 VCC 4 8 CS 7 CS 6D 5D SO-8 The AL1677 is available in SO-8 package. Featur

AL1677 Applications

* Retrofit LED Lamps
* High Voltage DC-DC LED Driver
* General Purpose Constant Current Source Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www. diodes. com/quality/lead_free. html for more information about Diodes

📥 Download Datasheet

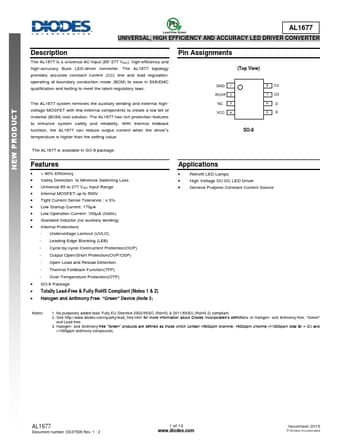

Preview of AL1677 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AL1677
Manufacturer
DIODES ↗
File Size
516.28 KB
Datasheet
AL1677-Diodes.pdf
Description
HIGH EFFICIENCY AND ACCURACY LED DRIVER CONVERTER
