AL1676 - UNIVERSAL HIGH POWER FACTOR BUCK LED DRIVER

AL1676 Description

NOT RECOMMENDED FOR NEW DESIGN NO ALTERNATIVE PART AL1676 UNIVERSAL HIGH POWER FACTOR BUCK LED DRIVER .
The AL1676 is a universal AC input (85~277 VAC), high power factor (PF) and high efficiency Buck LED driver.

AL1676 Features

* to enhance system safety and reliability, including under voltage lock out (UVLO), LED open/short, over voltage, over current, over temperature protection and thermal fold-back function which can reduce output current when the driver’s temperature is higher than the setting value. Pin Assignments (

AL1676 Applications

* Retrofit LED Lamps
* LED Tube
* High Voltage DC-DC LED Driver
* General Purpose Constant Current Source Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www. diodes. com/quality/lead_free. html for

📥 Download Datasheet

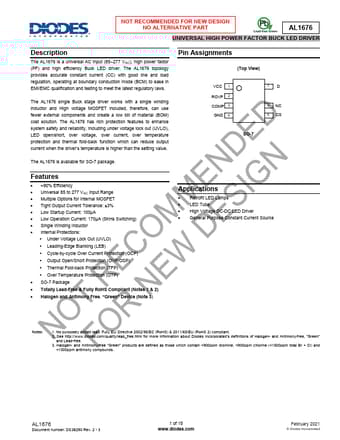

Preview of AL1676 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AL1676
Manufacturer
DIODES ↗
File Size
638.44 KB
Datasheet
AL1676-Diodes.pdf
Description
UNIVERSAL HIGH POWER FACTOR BUCK LED DRIVER
