AP4313

CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER

AP4313 Features

* Constant Voltage and Constant Current Control

* Precision Internal Voltage Reference

* Few External Components

* Easy Compensation

* Low Supply Current: 0.5mA

* Operating Temperature Range: -40 to +105oC

* T

AP4313 General Description

The AP4313 is a highly integrated solution for a constant voltage/constant current mode SMPS application. The AP4313 contains one 1.21V voltage reference with 1% accuracy, one current sensing circuit and two operational amplifiers. Combining the voltage reference with one operational amplifier make.

AP4313 Datasheet (346.86 KB)

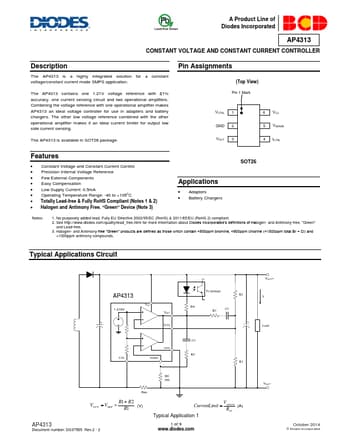

Preview of AP4313 PDF

Datasheet Details

Part number:

AP4313

Manufacturer:

DIODES ↗

File Size:

346.86 KB

Description:

Constant voltage and constant current controller.
