BSS123W - N-CHANNEL MOSFET

Datasheet Summary

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.

Features

  • Low Gate Threshold Voltage.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • Low Input/Output Leakage.
  • High Drain-Source Voltage Rating.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www. diodes. com/quality/product-definitions/.
  • An automotive-compliant part is ava.

📥 Download Datasheet

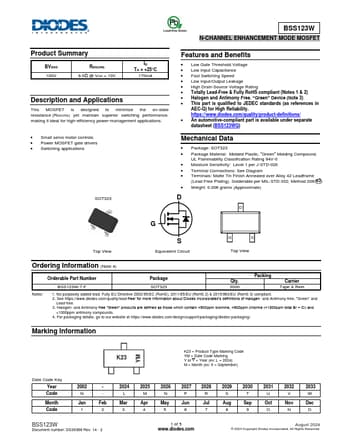

Datasheet preview – BSS123W

Datasheet Details

Part number BSS123W
Manufacturer DIODES
File Size 250.17 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet BSS123W Datasheet
Additional preview pages of the BSS123W datasheet.

📁 Similar Datasheet

  • BSS123W - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • BSS123W - N-Channel MOSFET (MCC)
  • BSS123 - N-Channel MOSFET (JCET)
  • BSS123 - N-channel transistor Logic level FET (NXP)
  • BSS123 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Fairchild Semiconductor)
  • BSS123 - SIPMOS Small Signal Transistor (Infineon Technologies AG)
  • BSS123 - N-CHANNEL POWER MOSFET (UTC)
  • BSS123 - 100V N-Channel Enhancement Mode MOSFE (PAN JIT)
  • BSS123 - N-Channel 100V MOSFET (LITE-ON)
  • BSS123 - N-Channel Logic Level Enhancement Mode Field Effect Transistor (ON Semiconductor)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
BSS123W N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 100V RDS(ON) 6.0Ω @ VGS = 10V ID TA = +25°C 170mA Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Features and Benefits • Low Gate Threshold Voltage • Low Input Capacitance • Fast Switching Speed • Low Input/Output Leakage • High Drain-Source Voltage Rating • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.
