* Low RDS(ON)
* ensures on state losses are minimized
* Small form factor thermally efficient package enables higher density end products
* Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
* 100% UIS (Avalanche) rated
* 100% Rg tested
DMG7410SFG Datasheet (511.81 KB)
DMG7410SFG
511.81 KB
N-channel mosfet.
NEW PRODUCT

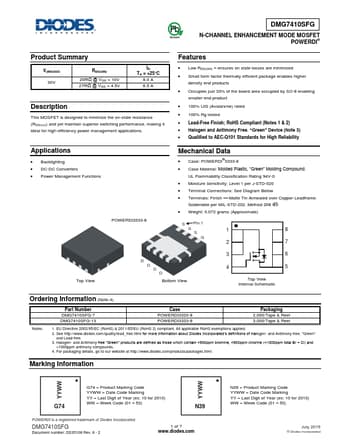

DMG7410SFG
Green N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI®
Product Summary
V(BR)DSS 30V
RDS(ON)
20mΩ @ VGS = 10V 27mΩ @ VGS = 4.5V
I.
