* Low On-Resistance
* Low Input/Output Leakage
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data
* Case: X2-DFN1010-3
* Case Material: Molded Plasti

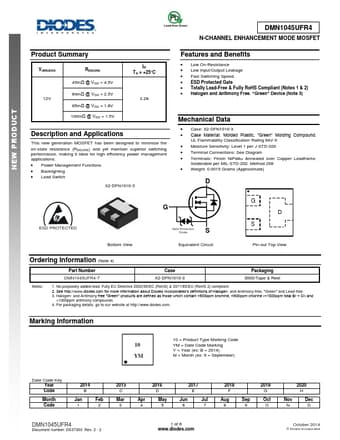

DMN1045UFR4 Datasheet (380.83 KB)
DMN1045UFR4
380.83 KB
N-channel mosfet.
NEW PRODUCT
DMN1045UFR4
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 12V
RDS(ON)
45mΩ @ VGS = 4.5V 64mΩ @ VGS = 2.5V 85mΩ @ VGS = 1..
