DMN1019USN Datasheet, Mosfet, Diodes

DMN1019USN Features

  • Mosfet
  • Low On-Resistance
  • ESD Protected Gate
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)  <

PDF File Details

Part number:

DMN1019USN

Manufacturer:

DIODES ↗

File Size:

292.75kb

Download:

📄 Datasheet

Description:

12v n-channel mosfet. This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching perform

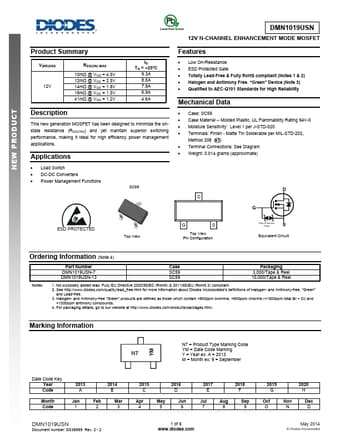

Datasheet Preview: DMN1019USN 📥 Download PDF (292.75kb)
Page 2 of DMN1019USN Page 3 of DMN1019USN

DMN1019USN Application

  • Applications Applications
  • Load Switch
  • DC-DC Converters
  • Power Management Functions SC59 DMN1019USN 12V N-CHANNEL EN

TAGS

DMN1019USN
12V
N-CHANNEL
MOSFET
Diodes
