* Provides a more reliable and robust interface between sensitive logic and DC relay coils.
* Replaces 3-4 discrete components enabling PCB footprint to be reduced.
* Internal active clamp removes the need for external zener diode.
* Totally Lead-Free & Fully RoHS Compliant (Notes 1

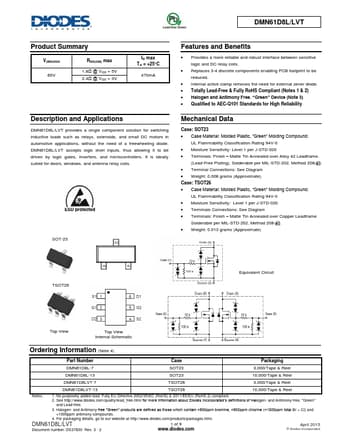

DMN61D8L Datasheet (484.77 KB)
DMN61D8L
484.77 KB
N-channel mosfet.
ADAVDAVNACNECDE IDNINFNEOFWRORMPARMTOAITDOIUNOCNT
DMN61D8L/LVT
Product Summary
V(BR)DSS 60V
RDS(ON) max
1.8Ω @ VGS = 5V 2.4Ω @ VGS = 3V
ID max TA.
📁 Related Datasheet
DMN61D8LQ - N-Channel MOSFET
(Diodes)
ADAVDAVNACNECDE IDNINFNEOFWRORMPARMTOAIDTOIUNOCNT
DMN61D8LQ
INTEGRATED RELAY AND INDUCTIVE LOAD DRIVER
Product Summary
BVDSS 60V
RDS(ON) Max
1.8Ω .
DMN61D8LVT - N-Channel MOSFET
(Diodes)
ADAVDAVNACNECDE IDNINFNEOFWRORMPARMTOAITDOIUNOCNT
DMN61D8L/LVT
Product Summary
V(BR)DSS 60V
RDS(ON) max
1.8Ω @ VGS = 5V 2.4Ω @ VGS = 3V
ID max TA.
DMN61D8LVTQ - N-Channel MOSFET
(Diodes)
DMN61D8LVTQ
INTEGRATED RELAY AND INDUCTIVE LOAD DRIVER
Product Summary
BVDSS 60V
RDS(ON) max
1.8Ω @ VGS = 5V 2.4Ω @ VGS = 3V
ID max TA = +25°C
630.
DMN61D9U - N-Channel MOSFET
(Diodes)
NEW PRNOEDWUCPTRODUCT
Product Summary
V(BR)DSS 60V
RDS(ON) max
2Ω @ VGS = 5V 2.5Ω @ VGS = 2.5V
ID max TA = +25°C
380mA
340mA
Description
This MOS.
DMN61D9UDW - N-Channel MOSFET
(Diodes)
NEW PRNOEDWUCPTRODUCT
DMN61D9UDW
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 60V
RDS(ON) max
2Ω @ VGS = 5.0V 2.5Ω @ VGS = 2.5V.
DMN61D9UDWQ - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
(DIODES)
NEW PRODUCT
DMN61D9UDWQ
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
BVDSS 60V
RDS(ON) Max
2Ω @ VGS = 5.0V 2.5Ω @ VGS = 2.5V 3.5Ω @ VGS .
DMN61D9UW - N-CHANNEL MOSFET
(Diodes)
THE DMN61D9UW IS NOT RECOMMENDED FOR NEW DESIGNS.
PLEASE USE THE DMN62D2UW.
DMN61D9UW
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 6.
DMN6140L - N-Channel MOSFET
(Diodes)
NEW PRODUCT
DMN6140L
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS 60V
RDS(on) max
140m @ VGS = 10V 170m @ VGS = 4.5V
ID TA = .
