DMN61D8LVTQ - N-Channel MOSFET

Diodes

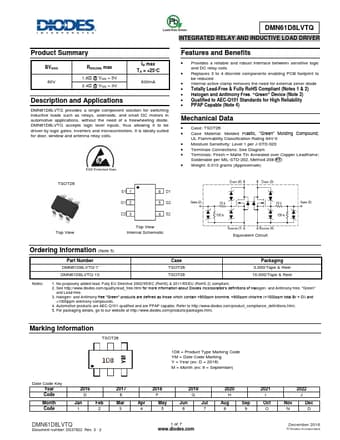

DMN61D8LVTQ Datasheet Preview — Preview of DMN61D8LVTQ PDF

Datasheet Details

Part number	DMN61D8LVTQ
Manufacturer	DIODES ↗
File Size	344.19 KB
Description	N-Channel MOSFET
Datasheet	DMN61D8LVTQ-Diodes.pdf

DMN61D8LVTQ Product details

Description

and Applications DMN61D8LVTQ provides a single component solution for switching inductive loads such as relays, solenoids, and small DC motors in automotive applications, without the need of a freewheeling diode.DMN61D8LVTQ accepts logic level inputs, thus allowing it to be driven by logic gates, inverters and microcontrollers.It is ideally suited for door, window and antenna relay coils.ESD Protected Gate

Features

Provides a reliable and robust interface between sensitive logic and DC relay coils.
Replaces 3 to 4 discrete components enabling PCB footprint to be reduced.
Internal active clamp removes the need for external zener diode.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
PPAP Capable (Note 4) Mechanical Data.
Case: TSOT26.
Case Material:.
