DMN61D8LQ - N-Channel MOSFET

Description

The DMN61D8LQ provides a single component solution for switching inductive loads such as relays, solenoids, and small DC motors in automotive applications, without the need of a freewheeling diode.

Features

  • Provides A More Reliable And Robust Interface Between Sensitive Logic And DC Relay Coils.
  • Replaces 3 to 4 Discrete Components Enabling PCB Footprint To Be Reduced.
  • Internal Active Clamp Removes The Need For External Zener Diode.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) Mechanical Data.
  • Case: SOT23.
  • Case Materi.

📥 Download Datasheet

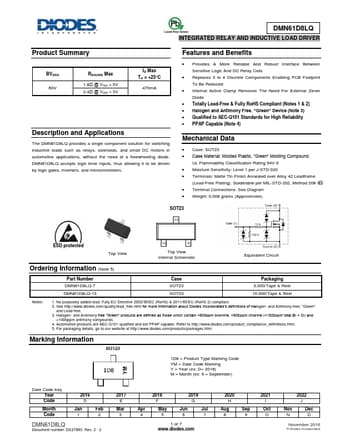

Datasheet preview – DMN61D8LQ

Datasheet Details

Part number DMN61D8LQ
Manufacturer Diodes Incorporated
File Size 505.47 KB
Description N-Channel MOSFET
Datasheet download datasheet DMN61D8LQ Datasheet
Additional preview pages of the DMN61D8LQ datasheet.

📁 Similar Datasheet

  • DMN600V - N-Channel MOSFET (Diodes Incorporated)
  • DMN6017SK3 - N-Channel MOSFET (INCHANGE)
  • DMN601DMK - N-Channel MOSFET (Diodes Incorporated)
  • DMN601DWK - N-Channel MOSFET (Diodes Incorporated)
  • DMN601K - N-Channel MOSFET (Diodes Incorporated)
  • DMN601TK - N-Channel MOSFET (Diodes Incorporated)
  • DMN601VK - N-Channel MOSFET (Diodes Incorporated)
  • DMN601WK - N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN6040SK3 - N-Channel MOSFET (INCHANGE)
  • DMN6040SK3 - 60V N-Channel MOSFET (Diodes Incorporated)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
ADAVDAVNACNECDE IDNINFNEOFWRORMPARMTOAIDTOIUNOCNT DMN61D8LQ INTEGRATED RELAY AND INDUCTIVE LOAD DRIVER Product Summary BVDSS 60V RDS(ON) Max 1.8Ω @ VGS = 5V 2.4Ω @ VGS = 3V ID Max TA = +25°C 470mA Description and Applications The DMN61D8LQ provides a single component solution for switching inductive loads such as relays, solenoids, and small DC motors in automotive applications, without the need of a freewheeling diode. DMN61D8LQ accepts logic level inputs, thus allowing it to be driven by logic gates, inverters, and microcontrollers.
