DMN61D8LVT, DMN61D8L - N-Channel MOSFET

Diodes

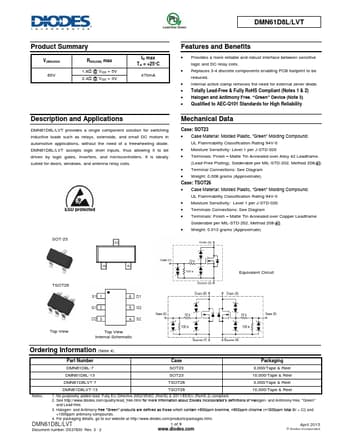

DMN61D8LVT Datasheet Preview — This datasheet PDF includes multiple part numbers: DMN61D8LVT, DMN61D8L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DMN61D8LVT, DMN61D8L
Manufacturer	DIODES ↗
File Size	484.77 KB
Description	N-Channel MOSFET
Datasheet	DMN61D8L-Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: DMN61D8LVT, DMN61D8L. Please refer to the document for exact specifications by model.

DMN61D8LVT Product details

Description

and Applications DMN61D8L/LVT provides a single component solution for switching inductive loads such as relays, solenoids, and small DC motors in automotive applications, without the need of a freewheeling diode.DMN61D8L/LVT accepts logic level inputs, thus allowing it to be driven by logic gates, inverters, and microcontrollers.It is ideally suited for doors, windows, and antenna relay coils.ESD protected SOT-23 View D

Features

Provides a more reliable and robust interface between sensitive logic and DC relay coils.
Replaces 3-4 discrete components enabling PCB footprint to be reduced.
Internal active clamp removes the need for external zener diode.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data Case: SOT23.
Case Material: Molded Plastic, “Green” Moldin.
