KBPC1000F - Silicon-Bridge Rectifiers

📥 Download Datasheet

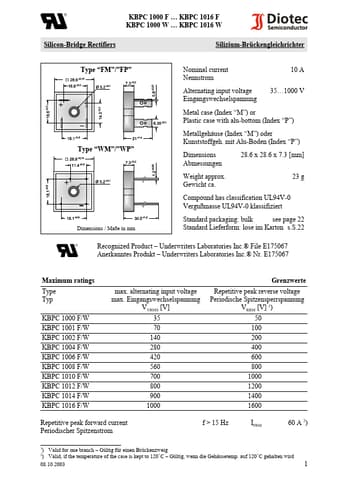

Datasheet preview – KBPC1000F

Datasheet Details

Part number KBPC1000F
Manufacturer Diotec
File Size 153.10 KB
Description Silicon-Bridge Rectifiers
Datasheet download datasheet KBPC1000F Datasheet
Additional preview pages of the KBPC1000F datasheet.

📁 Similar Datasheet

  • KBPC1000 - 10A SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • KBPC1000 - SINGLE PHASE 10 AMPS. SILICON BRIDGE RECTIFIERS (Jinan Gude Electronic Device)
  • KBPC1000 - 10A HIGH CURRENT BRIDGE RECTIFI (SANGDEST MICROELECTRONICS)
  • KBPC1000-G - Fast Recovery Bridge Rectifier (SENSITRON SEMICONDUCTOR)
  • KBPC10005 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (Kingtronics)
  • KBPC10005 - Bridge Rectifier (Formosa MS)
  • KBPC10005 - Bridge Rectifier (Yangzhou Yangjie)
  • KBPC10005 - 10.0 A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)
  • KBPC10005 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)
  • KBPC10005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (STS)
Other Datasheets by Diotec

Full PDF Text Transcription

Click to expand full text
KBPC 1000 F … KBPC 1016 F KBPC 1000 W … KBPC 1016 W Silicon-Bridge Rectifiers Silizium-Brückengleichrichter Type “FM”/”FP” Nominal current Nennstrom Alternating input voltage Eingangswechselspannung 10 A 35…1000 V Metal case (Index “M”) or Plastic case with alu-bottom (Index “P”) Metallgehäuse (Index “M”) oder Kunststoffgeh. mit Alu-Boden (Index “P”) Dimensions Abmessungen Weight approx. Gewicht ca. Compound has classification UL94V-0 Vergußmasse UL94V-0 klassifiziert Dimensions / Maße in mm Type “WM”/”WP” 28.6 x 28.6 x 7.3 [mm] 23 g Standard packaging: bulk see page 22 Standard Lieferform: lose im Karton s.S.22 Recognized Product – Underwriters Laboratories Inc.® File E175067 Anerkanntes Produkt – Underwriters Laboratories Inc.® Nr.
