KBPC1000FP Datasheet PDF - Diotec Single Phase Bridge Rectifier Specs

KBPC1000FP - Single Phase Bridge Rectifier

Datasheet Summary

Features

UL recognized, File E175067 VRRM up to 1600 V FP = Fast-on terminals 2,3) WP = Wire terminals 3) Plastic case 4) with isolated aluminium baseplate Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) Packed in cardboard trays WEEE RoHS Pb FP : 240 WP : 160 ELV Typische Anwendung 50/60 Hz Netzgleichrichtung, Stromversorgungen Standardausführung 1) Besonderheit UL-anerkannt, Liste E175067 VRRM bis zu 1600 V FP = Fast-on Anschlüsse 2,3) WP = Dra.

Datasheet Details

Part number	KBPC1000FP
Manufacturer	Diotec
File Size	386.88 KB
Description	Single Phase Bridge Rectifier
Datasheet	KBPC1000FP Datasheet
Additional preview pages of the KBPC1000FP datasheet.

📁 Similar Datasheet

KBPC1000 - 10A SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)

KBPC1000 - SINGLE PHASE 10 AMPS. SILICON BRIDGE RECTIFIERS (Jinan Gude Electronic Device)

KBPC1000 - 10A HIGH CURRENT BRIDGE RECTIFI (SANGDEST MICROELECTRONICS)

KBPC1000-G - Fast Recovery Bridge Rectifier (SENSITRON SEMICONDUCTOR)

KBPC10005 - SINGLE-PHASE GLASS PASSIVATED BRIDGE RECTIFIERS (Kingtronics)

KBPC10005 - Bridge Rectifier (Formosa MS)

KBPC10005 - Bridge Rectifier (Yangzhou Yangjie)

KBPC10005 - 10.0 A Single-Phase Silicon Bridge Rectifier (SEP ELECTRONIC)

KBPC10005 - SINGLE-PHASE BRIDGE RECTIFIER (Suntan)

KBPC10005 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (STS)

Full PDF Text Transcription

Click to expand full text

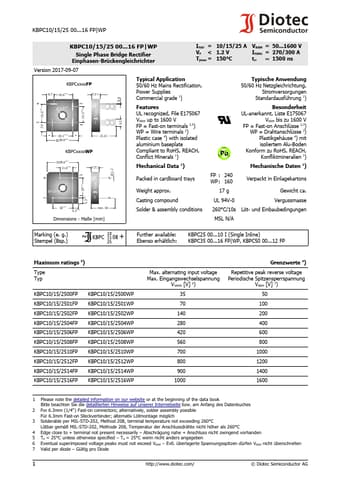

KBPC10/15/25 00...16 FP|WP KBPC10/15/25 00...16 FP|WP Single Phase Bridge Rectifier Einphasen-Brückengleichrichter IFAV = VF < Tjmax = 10/15/25 A 1.2 V 150°C VRRM = 50...1600 V IFSM1 = 270/300 A trr ~ 1500 ns Version 2017-09-07 KBPCxxxxFP 6.7 16.6±0.5 + Ø 5.2±0.2 7.3+0.7 –0.1 ~+ 16.6±0.5 ~ 7.9 = 18.1±0.5 = 28.6±0.5 21.6+–21 KBPCxxxxWP 28.6±0.5 11.6±0.5 7.3+0.7 - 0.1 + ~+ 14.3±0.5 ~ Type 6.3 0.8 Ø 1.
