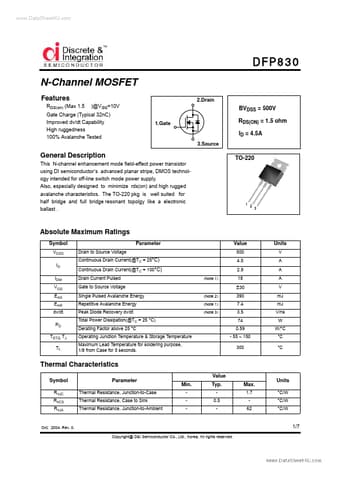

DFP830 Datasheet, Mosfet, DnI

DFP830 Features

• Mosfet RDS(on) (Max 1.5 )@VGS=10V 1.Gate 2.Drain Gate Charge (Typical 32nC) Improved dv/dt Capability High ruggedness 100% Avalanche Tested BVDSS = 500V RDS(ON) = 1.5 ohm ID = 4.5A 3.Source

PDF File Details

Part number:

DFP830

Manufacturer:

DnI

File Size:

724.53kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intend
