DFP85N06 Datasheet, Mosfet, DnI

DFP85N06 Features

  • Mosfet Low RDS(on) (0.010 )@VGS=10V Low Gate Charge (Typical 96nC) Low Crss (Typical 215pF) Improved dv/dt Capability 100% Avalanche Tested Maximum Junction Temperature Range 2.Drain BVDSS =

PDF File Details

Part number:

DFP85N06

Manufacturer:

DnI

File Size:

701.36kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This N-channel enhancement mode field-effect power transistor using DI semiconductor’s advanced planar stripe, DMOS technology intend

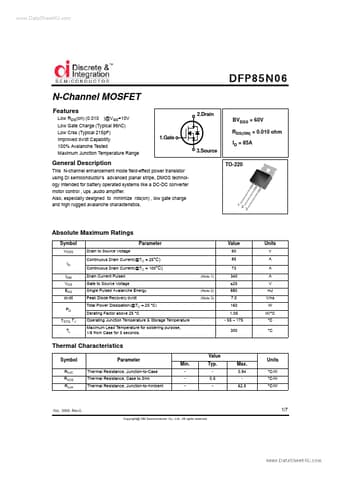

Datasheet Preview: DFP85N06 📥 Download PDF (701.36kb)
Page 2 of DFP85N06 Page 3 of DFP85N06
