AR2500 AUTOMOTIVE RECTIFIER DIODES

AR2500 Description

www.eicsemi.com AR2500 - AR2512 PRV : 50 - 1200 Volts Io : 25 Amperes AUTOMOTIVE RECTIFIER DIODES BUTTON CASE .

AR2500 Features

* :
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free 5° NOM 0.410 (10.4) 0.380 (9.70) 0.250 (6.4) 0.235 (6.0) 0.185 (4.7) 0.165 (4.2) MECHANICAL DATA :
* Case : Molded plastic

📥 Download Datasheet

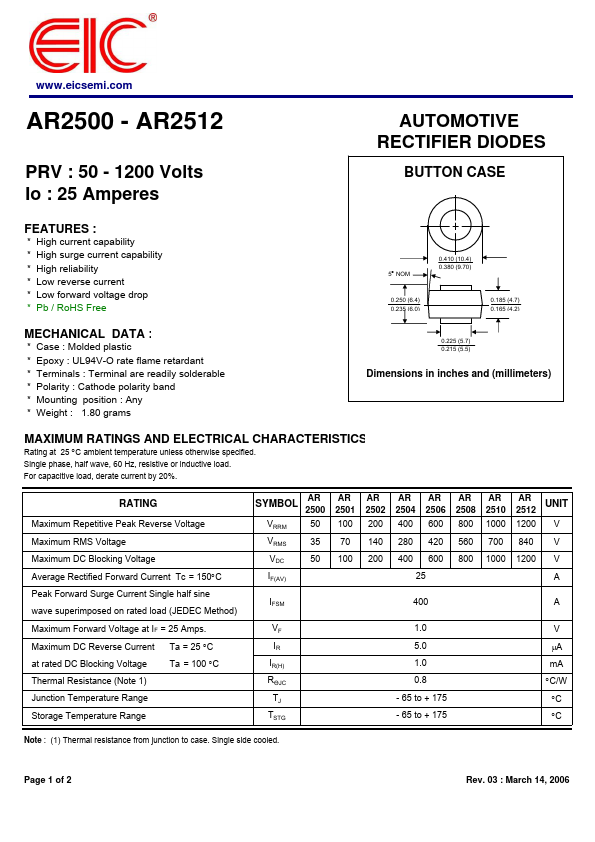

Preview of AR2500 PDF

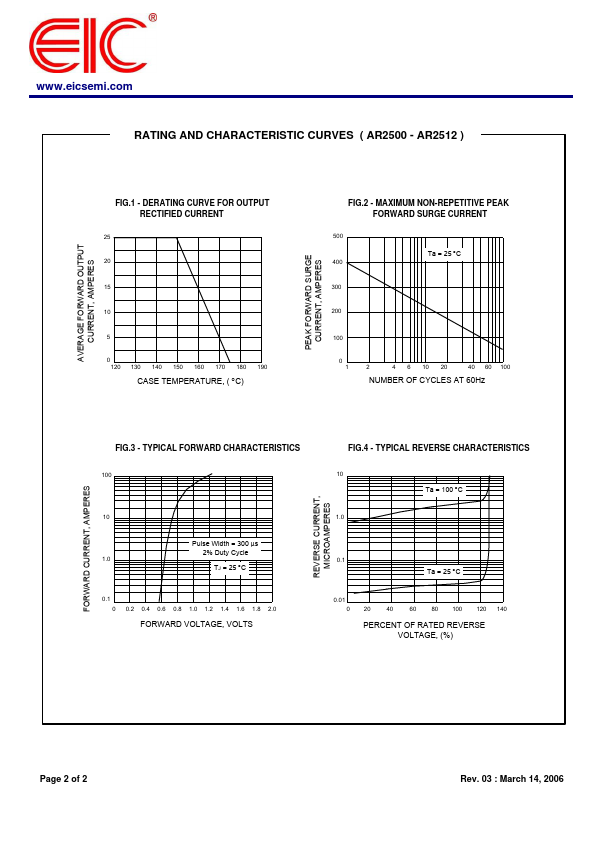

datasheet Preview Page 2

Datasheet Details

Part number
AR2500
Manufacturer
EIC
File Size
78.41 KB
Datasheet
AR2500-EIC.pdf
Description
AUTOMOTIVE RECTIFIER DIODES
