ELM621 - SERIAL 3-BIT PORT

Product Overview

ELM Electronics

Part number	ELM621
Manufacturer	ELM Electronics
File Size	28.66 KB
Description	SERIAL 3-BIT PORT
Datasheet	ELM621 Datasheet

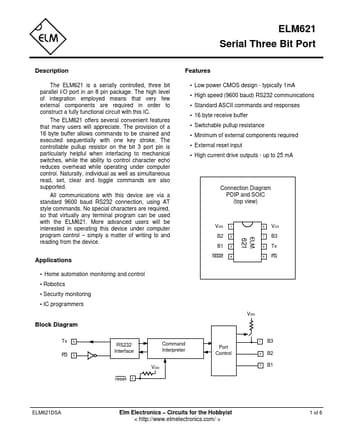

Additional preview pages of the ELM621 datasheet.

The ELM621 is a serially controlled, three bit parallel I/O port in an 8 pin package.

that many users will appreciate. The provision of a 16 byte buffer allows commands to be chained and executed sequentially with one key stroke. The controllable pullup resistor on the bit 3 port pin is particularly helpful when interfacing to mechanical switches, while the ability to control character echo reduces overhead while operating under computer control. Naturally, individual as well as simultaneous read, set, clear and toggle commands are also supported. All communications with this dev.
