ELM611DA

high efficiency synchronous PWM step down DC/DC converter

ELM611DA Features

* Programmable soft start

* Short circuit protection

* Thermal shutdown protection

* Input voltage : 4.75V to 23V

* Output voltage : 0.923V to 18V

* Output current : 2A

* High efficiency : Max.93%

* Power MOSFET switches : 85

ELM611DA General Description

ELM611DA is 350kHz fixed frequency PWM synchronous step-down regulator, whose input voltage can be set within the range from 4.75V to 23V and output one is adjustable within the range from 0.923V to 18V; maximum output current of ELM611DA can reach 2A. ELM611DA includes 2 switching MOSFETs whose ON .

ELM611DA Datasheet (768.46 KB)

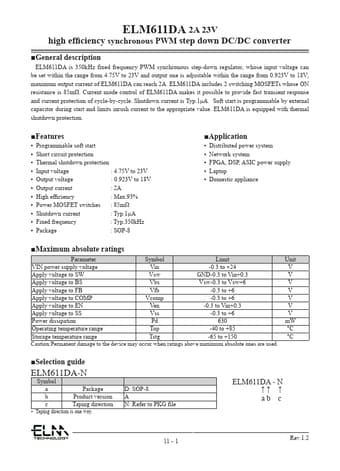

Preview of ELM611DA PDF
