ELM613DA

synchronous step-down DC/DC converter

ELM613DA Features

* Programmable soft start

* Short circuit protection

* Thermal shutdown protection

* Input voltage : 4.75V to 20V

* Output voltage : 0.923V to 18V

* Output current : 2A

* High efficiency : Max.93%

* Power MOSFET switches : 8

ELM613DA General Description

ELM613DA is 550KHz fixed frequency PWM synchronous step-down regulator. ELM613DA is operated from 4.75V to 20V, the generated output is adjustable from 0.923V to 18V, and the output current can be up to 2A. The integrated two MOSFET switches is with turn on resistance of 0.085Ω. Current mode control.

ELM613DA Datasheet (829.19 KB)

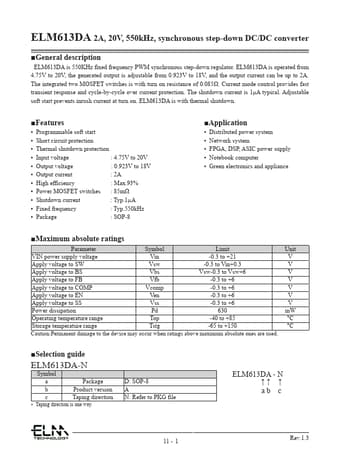

Preview of ELM613DA PDF
