ELM621LA

High efficiency 30V step up DC/DC converter

ELM621LA Features

* Current mode operation

* Thermal shutdown protection

* Undervoltage-lockout (UVLO)

* Input voltage range

* Internal current limit

* Shutdown current

* Constant frequency operation

* High efficiency

* Package : 2.5V to 5.5V : 1

ELM621LA General Description

ELM621LA is a high efficiency step-up DC/DC converter using a constant frequency, current mode architecture. Featuring current-mode and fixed frequency operation, this device incorporates an integrated main switch and the switching frequency is internally set at 1.3MHz, allowing the use of small sur.

ELM621LA Datasheet (340.79 KB)

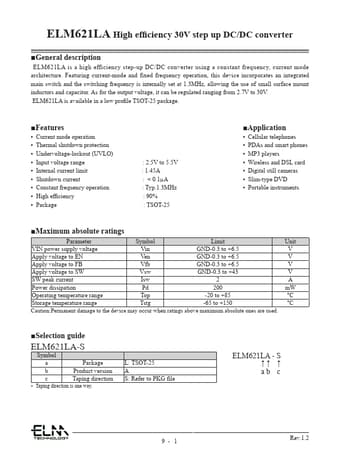

Preview of ELM621LA PDF

Datasheet Details

Part number:

ELM621LA

Manufacturer:

ELM Technology

File Size:

340.79 KB

Description:

High efficiency 30v step up dc/dc converter.
