ELM612DA - 3A 36V PWM step down DC/DC converter

Product Overview

ELM Technology

📥 Download Datasheet

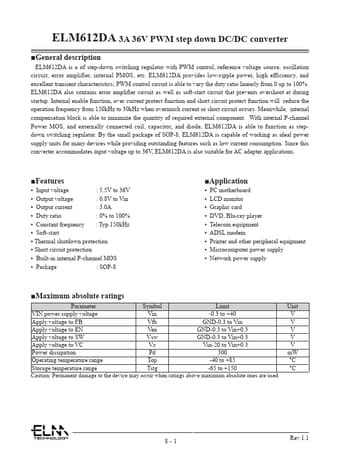

ELM612DA 3A 36V PWM step down DC/DC converter by ELM Technology - Datasheet Preview — Datasheet preview – ELM612DA

Datasheet Details

Part number	ELM612DA
Manufacturer	ELM Technology
File Size	687.07 KB
Description	3A 36V PWM step down DC/DC converter
Datasheet	ELM612DA Datasheet
Additional preview pages of the ELM612DA datasheet.

Product details

Description

ELM612DA is a of step-down switching regulator with PWM control, reference voltage source, oscillation circuit, error amplifier, internal PMOS, etc.

Features

Input voltage : 5.5V to 36V.
Output voltage : 0.8V to Vin.
Output current : 3.0A.
Duty ratio : 0% to 100%.
Constant frequency : Typ.150kHz.
Soft-start.
Thermal shutdown protection.
Short circuit protection.
Built-in internal P-channel MOS.
Package : SOP-8.
