ELM610DA - 1.3A 36V PWM step down DC/DC converter

Product Overview

ELM Technology

📥 Download Datasheet

ELM610DA 1.3A 36V PWM step down DC/DC converter by ELM Technology - Datasheet Preview — Datasheet preview – ELM610DA

Datasheet Details

Part number	ELM610DA
Manufacturer	ELM Technology
File Size	608.41 KB
Description	1.3A 36V PWM step down DC/DC converter
Datasheet	ELM610DA Datasheet

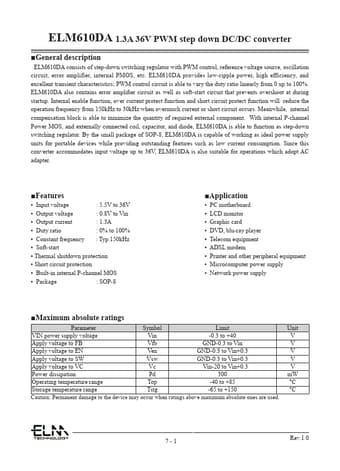

Additional preview pages of the ELM610DA datasheet.

Product details

Description

ELM610DA consists of step-down switching regulator with PWM control, reference voltage source, oscillation circuit, error amplifier, internal PMOS, etc.

Features

Input voltage : 5.5V to 36V.
Output voltage : 0.8V to Vin.
Output current : 1.3A.
Duty ratio : 0% to 100%.
Constant frequency : Typ.150kHz.
Soft-start.
Thermal shutdown protection.
Short circuit protection.
Built-in internal P-channel MOS.
Package : SOP-8.
