M12L128168A-5BVAG2S, M12L128168A-5TVG2S Datasheet - ESMT

M12L128168A-5BVAG2S, M12L128168A-5TVG2S, 2M x 16 Bit x 4 Banks Synchronous DRAM

ESMT SDRAM .
The M12L128168A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits.

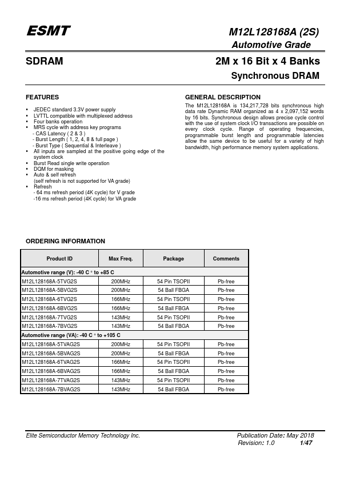

datasheet Preview Page 1 from Datasheet4u.com

M12L128168A-5TVG2S-ESMT.pdf

M12L128168A-5BVAG2S Datasheet Preview — This datasheet PDF includes multiple part numbers: M12L128168A-5BVAG2S, M12L128168A-5TVG2S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M12L128168A-5BVAG2S, M12L128168A-5TVG2S

Manufacturer:

ESMT

File Size:

1.02 MB

Description:

2M x 16 Bit x 4 Banks Synchronous DRAM

Note:

This datasheet PDF includes multiple part numbers: M12L128168A-5BVAG2S, M12L128168A-5TVG2S.
Please refer to the document for exact specifications by model.

Features

* JEDEC standard 3.3V power supply
* LVTTL compatible with multiplexed address
* Four banks operation
* MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave )
* All inputs are sampled at the p
