M12L64164A-6TG2M, M12L64164A-5TG2M Datasheet - ESMT

M12L64164A-6TG2M, M12L64164A-5TG2M, 1M x 16 Bit x 4 Banks Synchronous DRAM

ESMT SDRAM .
The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits.

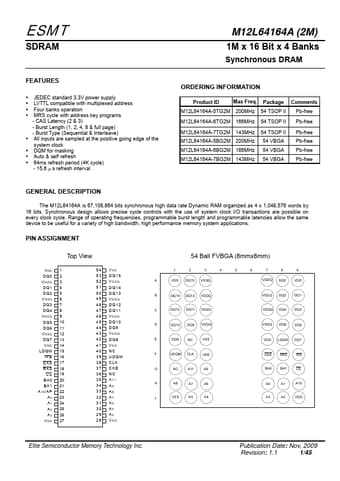

datasheet Preview Page 1 from Datasheet4u.com

M12L64164A-5TG2M-ESMT.pdf

M12L64164A-6TG2M Datasheet Preview — This datasheet PDF includes multiple part numbers: M12L64164A-6TG2M, M12L64164A-5TG2M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M12L64164A-6TG2M, M12L64164A-5TG2M

Manufacturer:

ESMT

File Size:

1.22 MB

Description:

1M x 16 Bit x 4 Banks Synchronous DRAM

Note:

This datasheet PDF includes multiple part numbers: M12L64164A-6TG2M, M12L64164A-5TG2M.
Please refer to the document for exact specifications by model.

Features

* y JEDEC standard 3.3V power supply y LVTTL compatible with multiplexed address y Four banks operation y MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) y All inputs are sampled at the positive going edge of the
