M14D1G1664A-1.6BG2P, M14D1G1664A DDR-II SDRAM

M14D1G1664A-1.6BG2P Description

ESMT DDR II SDRAM M14D1G1664A (2P) 8M x 16 Bit x 8 Banks DDR II SDRAM .
Pin Name A0~A12, BA0~BA2 DQ0~DQ15 RAS CAS WE VSS VDD DQS, DQS (LDQS, LDQS UDQS, UDQS) ODT NC Function Address inputs - Row address A0~A12 - Column a.

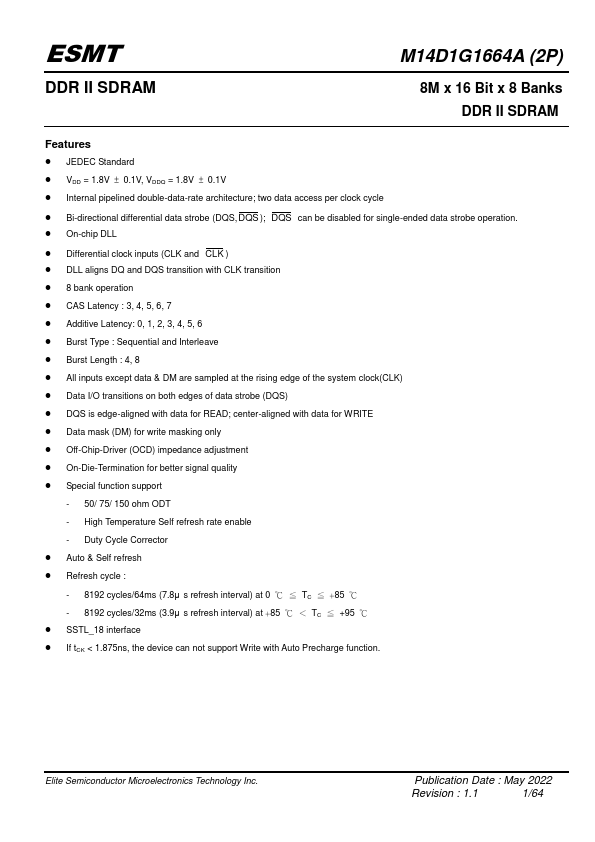

M14D1G1664A-1.6BG2P Features

* JEDEC Standard
* VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V
* Internal pipelined double-data-rate architecture; two data access per clock cycle
* Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
* On-chip DLL
* Diff

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M14D1G1664A-1.6BG2P, M14D1G1664A. Please refer to the document for exact specifications by model.

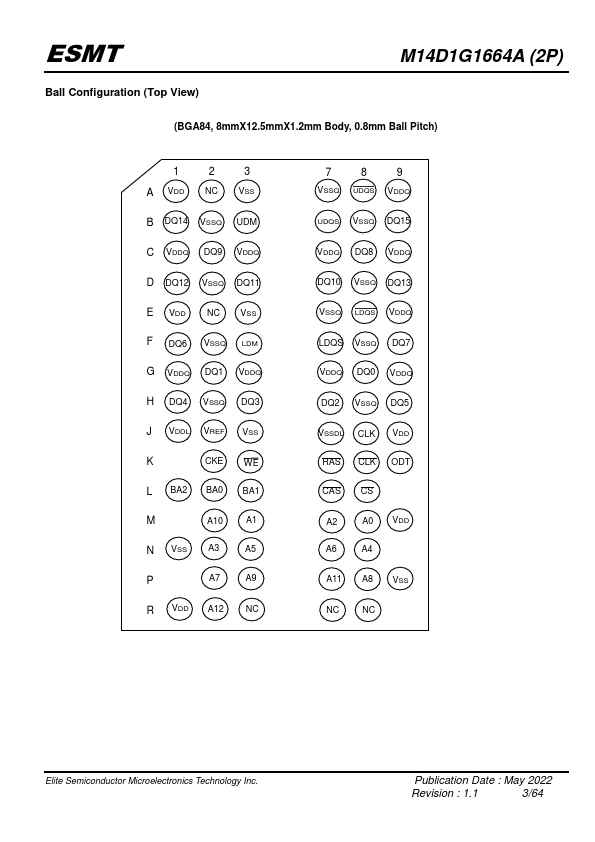

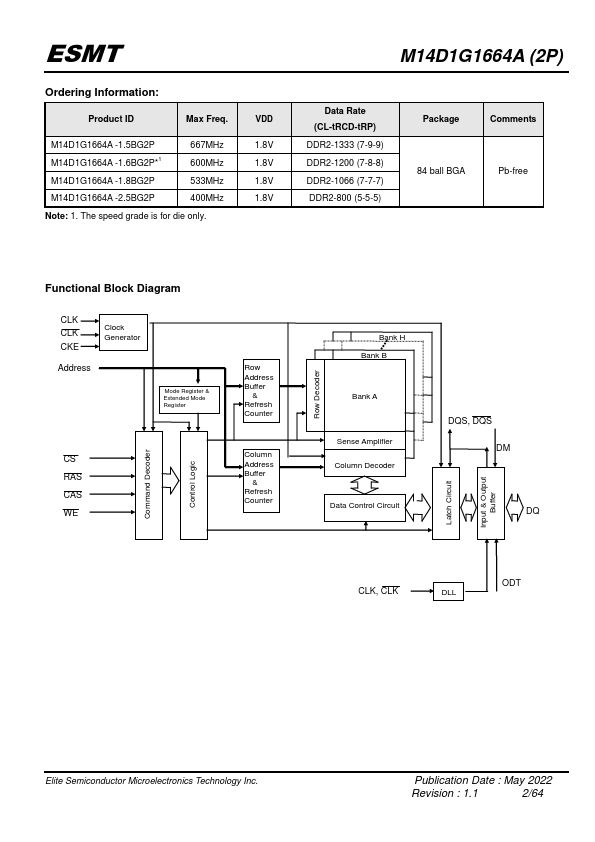

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M14D1G1664A-1.6BG2P, M14D1G1664A
Manufacturer
ESMT
File Size
1.98 MB
Datasheet
M14D1G1664A-ESMT.pdf
Description
DDR-II SDRAM
Note
This datasheet PDF includes multiple part numbers: M14D1G1664A-1.6BG2P, M14D1G1664A.
Please refer to the document for exact specifications by model.
