M53D1G1664A Datasheet - ESMT

M53D1G1664A Mobile DDR SDRAM

Ball Name Function A0~A13, BA0~BA1 Address inputs - Row address A0~A13 - Column address A0~A9 A10/AP : AUTO Precharge BA0~BA1 : Bank selects (4 Banks) DQ0~DQ15 Data-in/Data-out RAS CAS WE VSS VDD LDQS, UDQS Row address strobe Column address strobe Write enable Ground Power Bi-directional Data.

M53D1G1664A Features

* JEDEC Standard

* Internal pipelined double-data-rate architecture, two data access per clock cycle

* Bi-directional data strobe (DQS)

* No DLL; CLK to DQS is not synchronized.

* Differential clock inputs (CLK and CLK )

* Four bank operation

* CAS Latency : 2, 3

* Bu

M53D1G1664A-ESMT.pdf

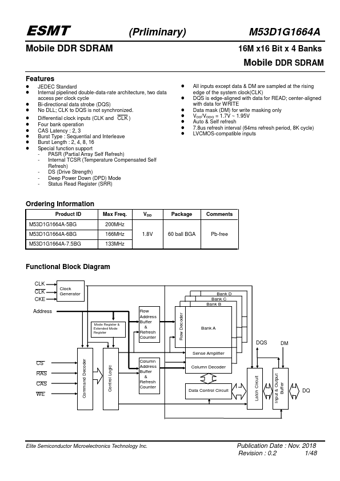

M53D1G1664A Datasheet Preview — Preview of M53D1G1664A PDF

Datasheet Details

Part number:

M53D1G1664A

Manufacturer:

ESMT

File Size:

1.87 MB

Description:

Mobile ddr sdram.
